Cottonwood
from
CA $1,497
1
bedrooms
1
bathrooms
1,664
square feet
Cottonwood

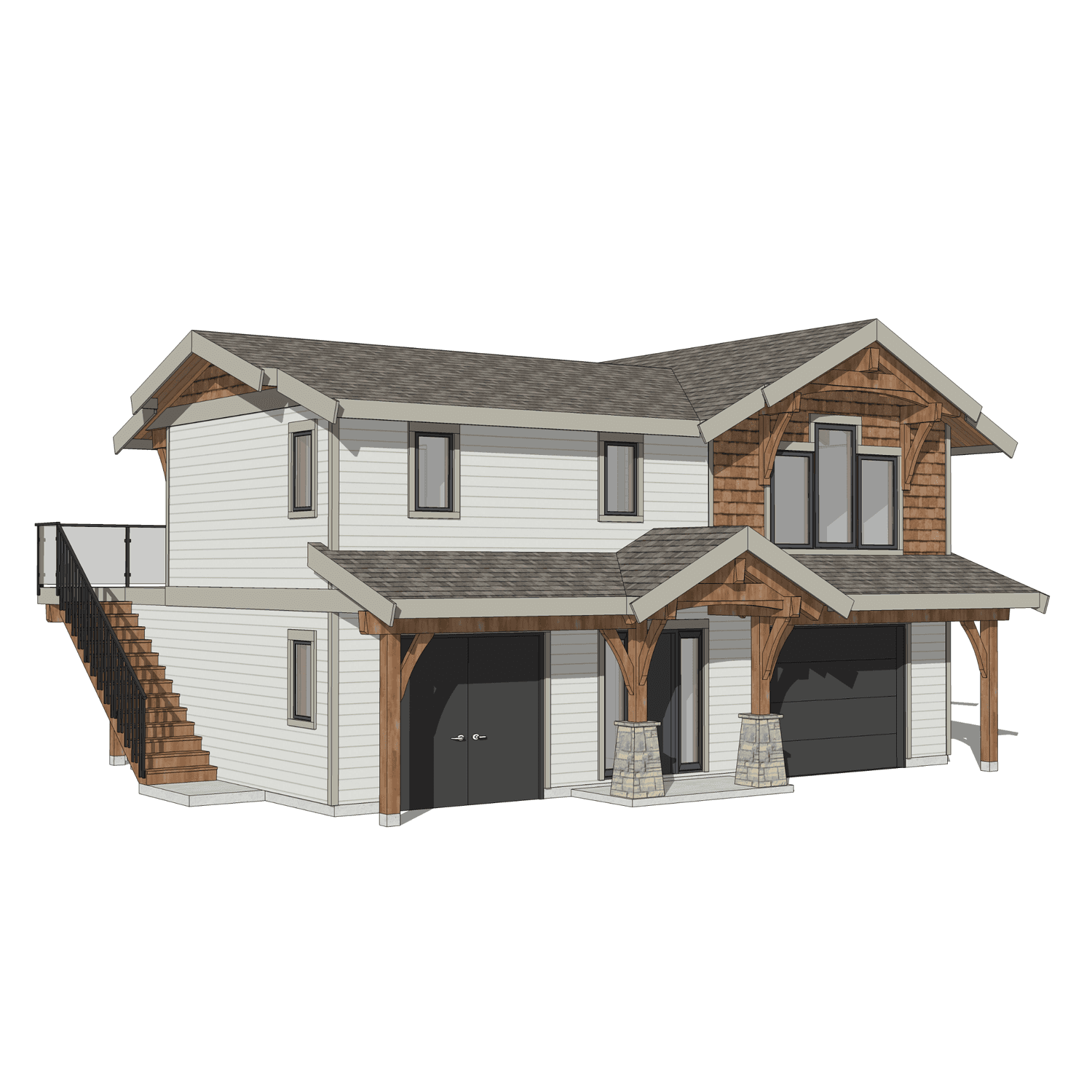

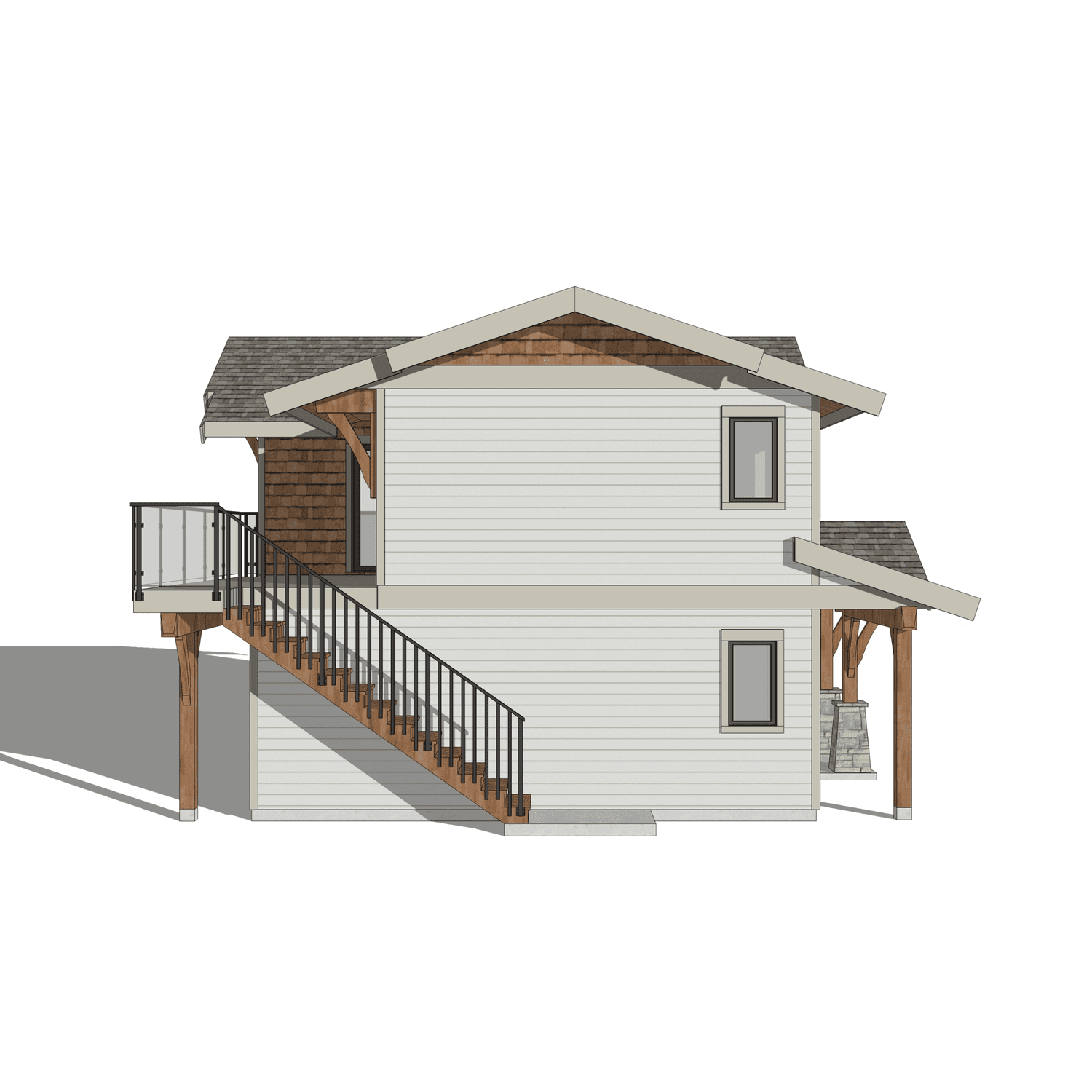

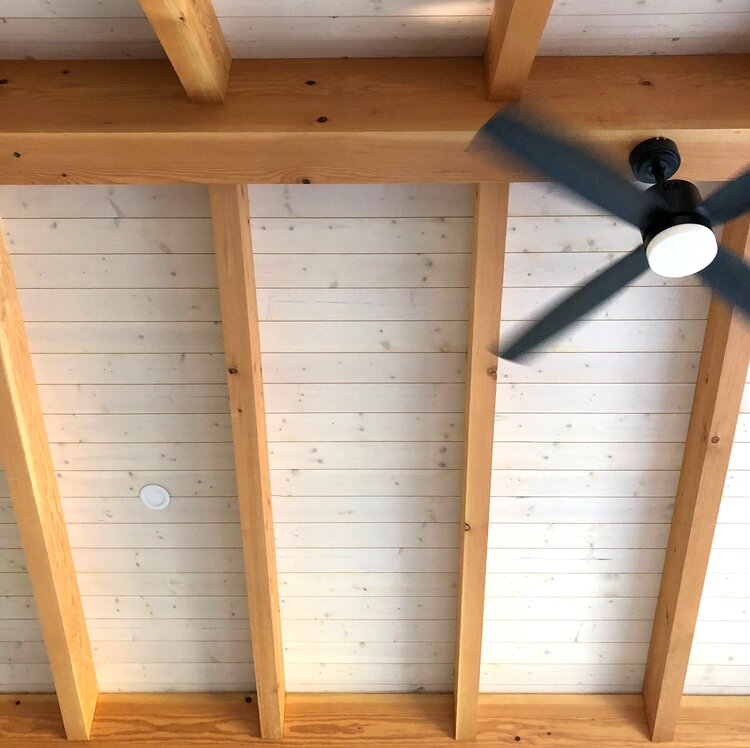

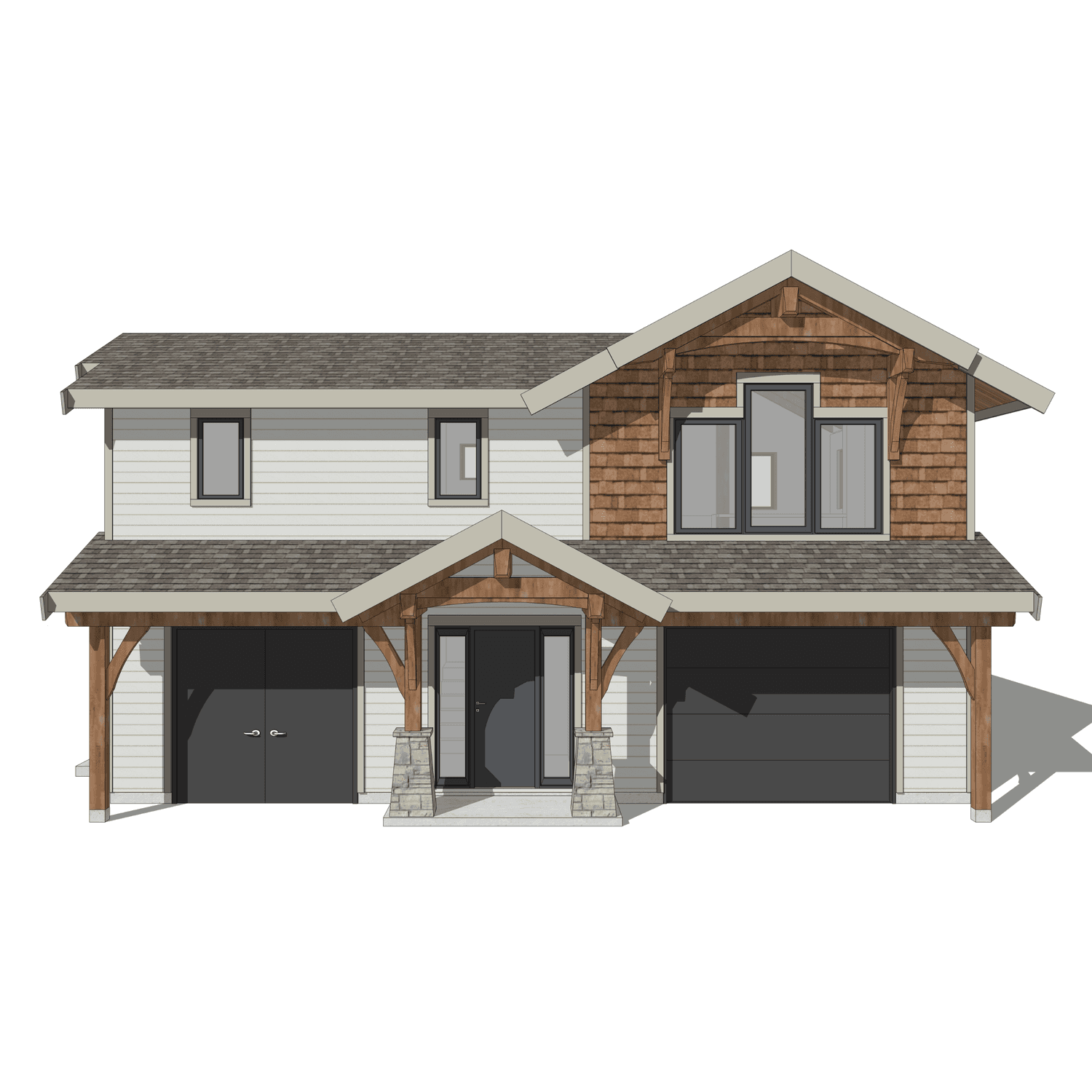

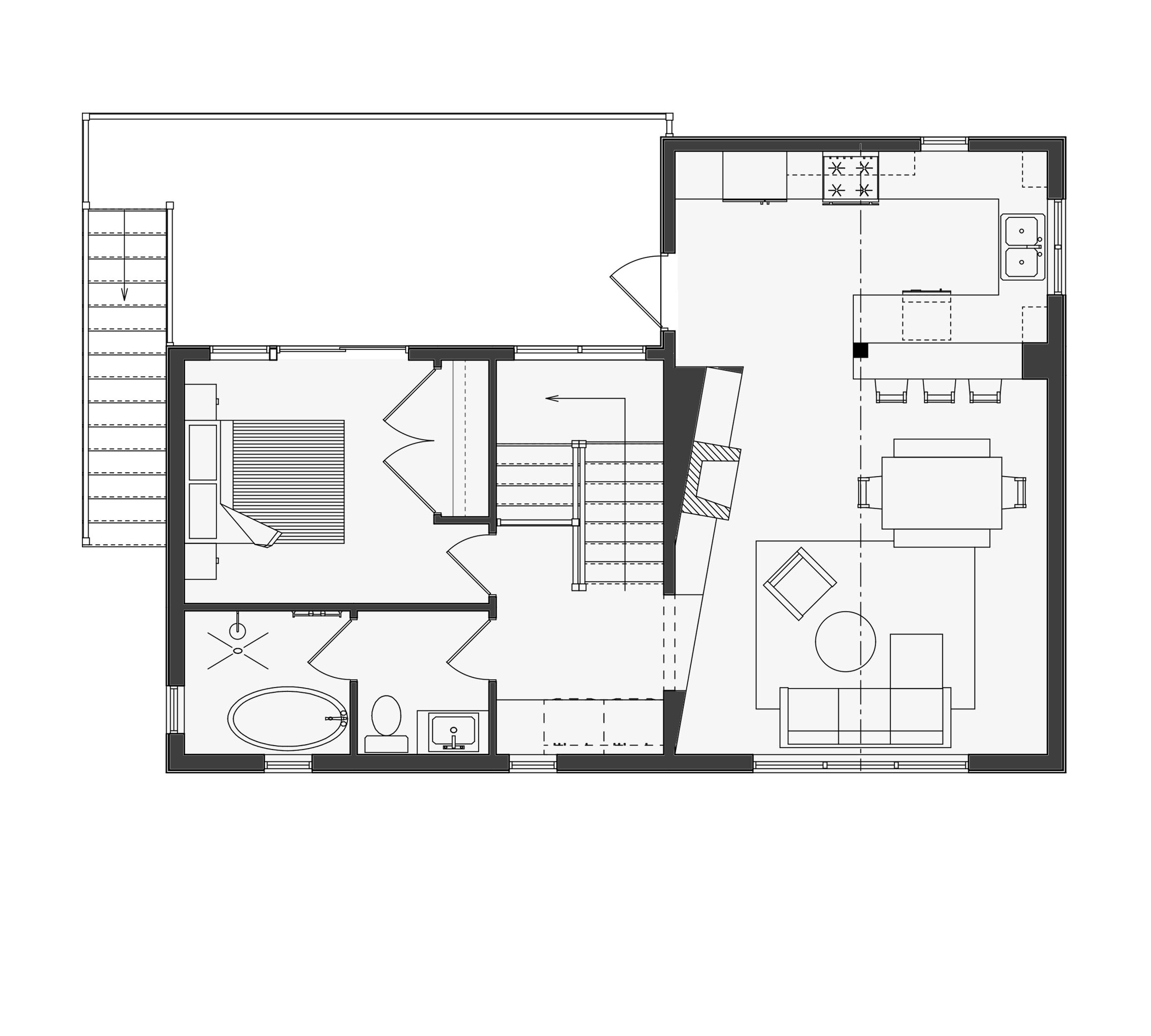

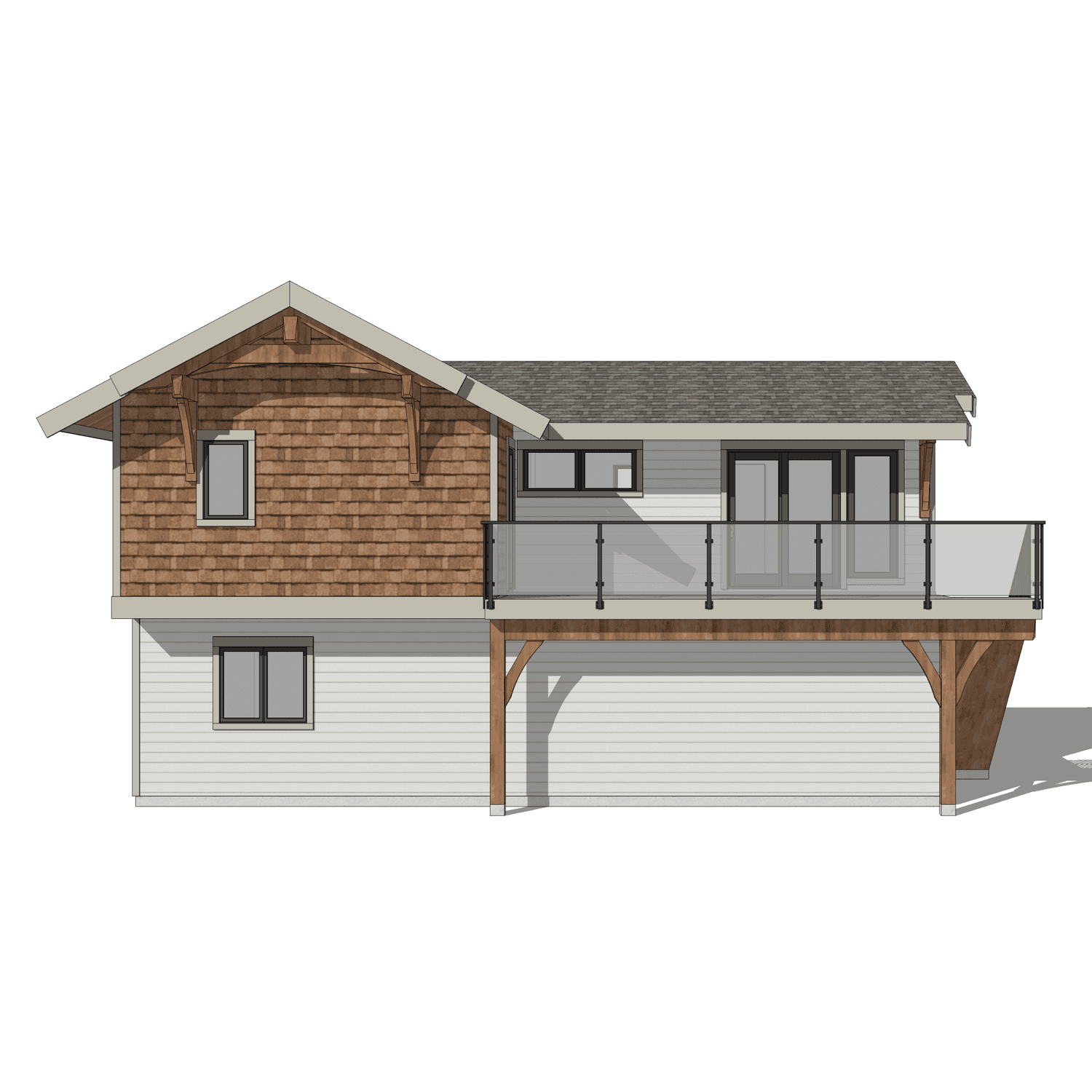

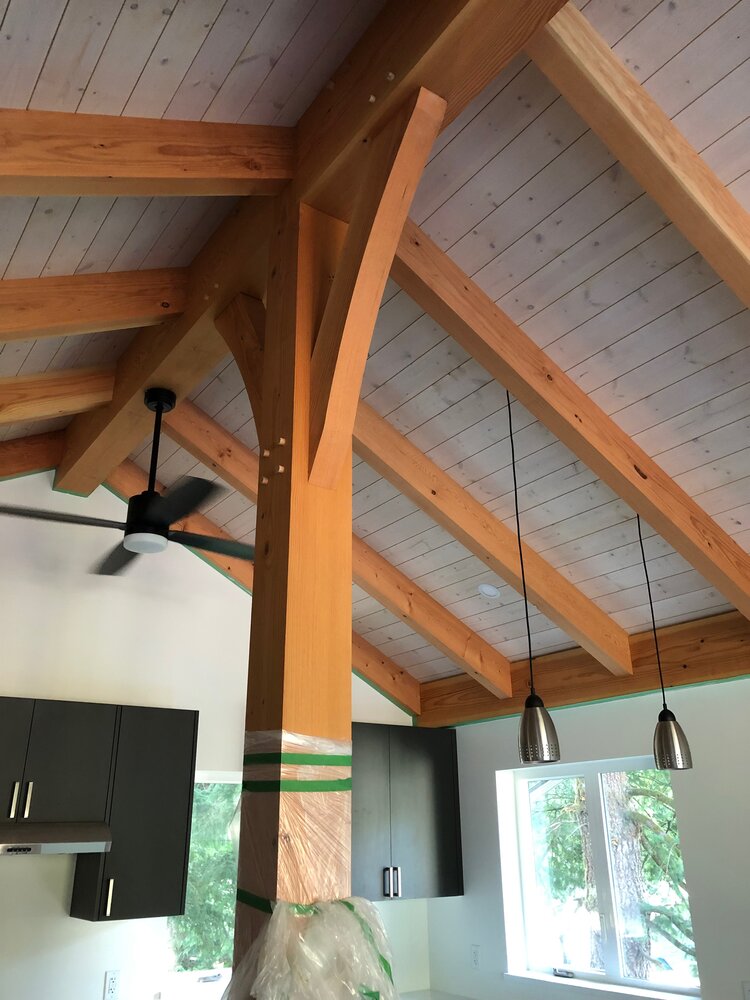

This cozy carriage home is just right for a timber-frame enthusiast on a budget. Built conventionally, but boasting with timbered charm. Need an extra bedroom? Replace the garage on the left with an additional bed & bath, and storage. Upstairs, the living area all share the ambience of a vaulted timber-framed ceiling and an 18 ft. angled feature wall. Adjacent to the bedroom, the bathroom has been split to accommodate guests. Lastly, a large, partially covered deck is accessed off the kitchen and bedroom.
Design Specs
Building Footprint: 40.8 ft. wide x 31.3 ft. deep
Building Height (Top of Ridge): 23.25 ft.
Area:
Total Area: 1,664.3 sf. (154.6 sm.)
Living Area (incl. entry): 860.8 sf. (80.0 sm.)
Balcony Area: 214.5 sf. (19.9 sm.)
Garage Area: 803.5 sf. (74.6 sm.)
Ceilings:
Suite: 8 ft. Walls and Vaulted Ceilings
Garage: 9 ft. Ceilings
Construction & Mechanical
2×6 Exterior Framing and/or SIP Panel Upper Floor
Batt Insulation / Spray Foam (where required)
Trussed and/or Framed Roofing System

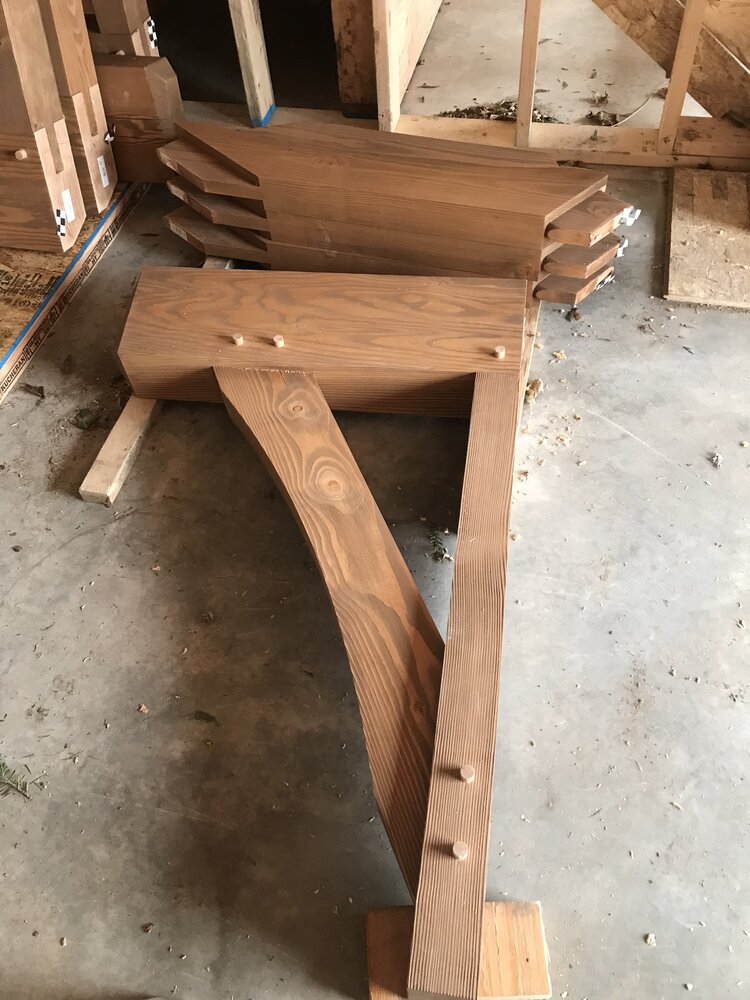

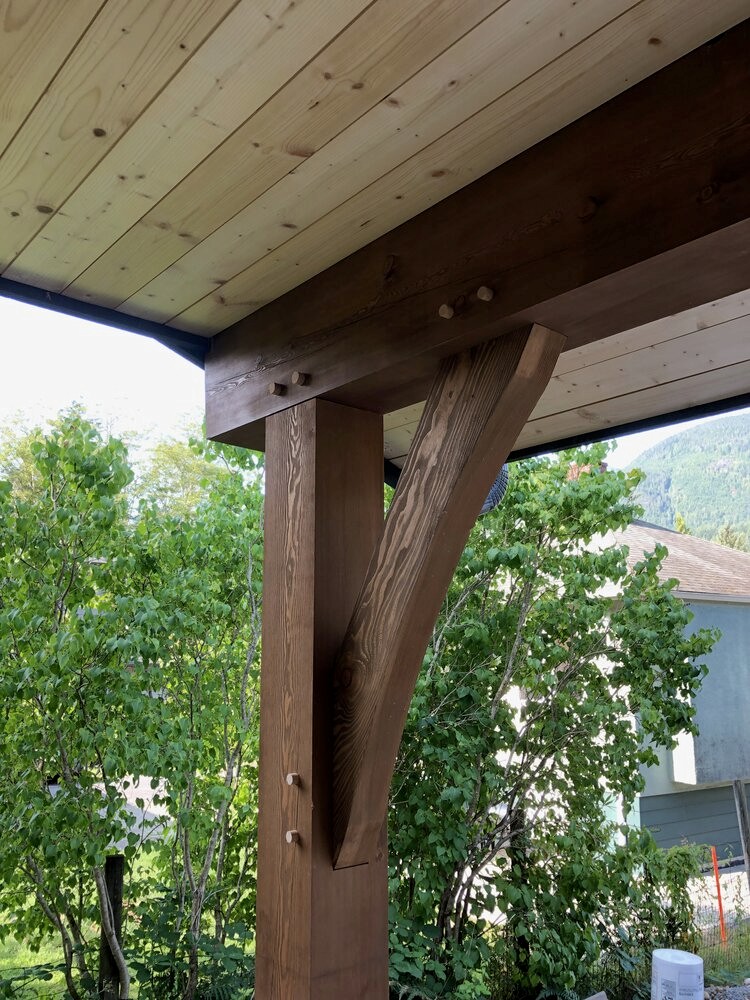

Cedar or Hardie Lapped Siding, Fir Posts and Beams, Cedar Soffits, and Duroid Roofing
Tankless Water Heater and Ductless Mini Split System/Heat Pump
Additional Features: Water Closet, Laundry, Gas Fireplace, Built-ins, Timber Frame Ceiling, Interior Entry, and Storage Spaces.

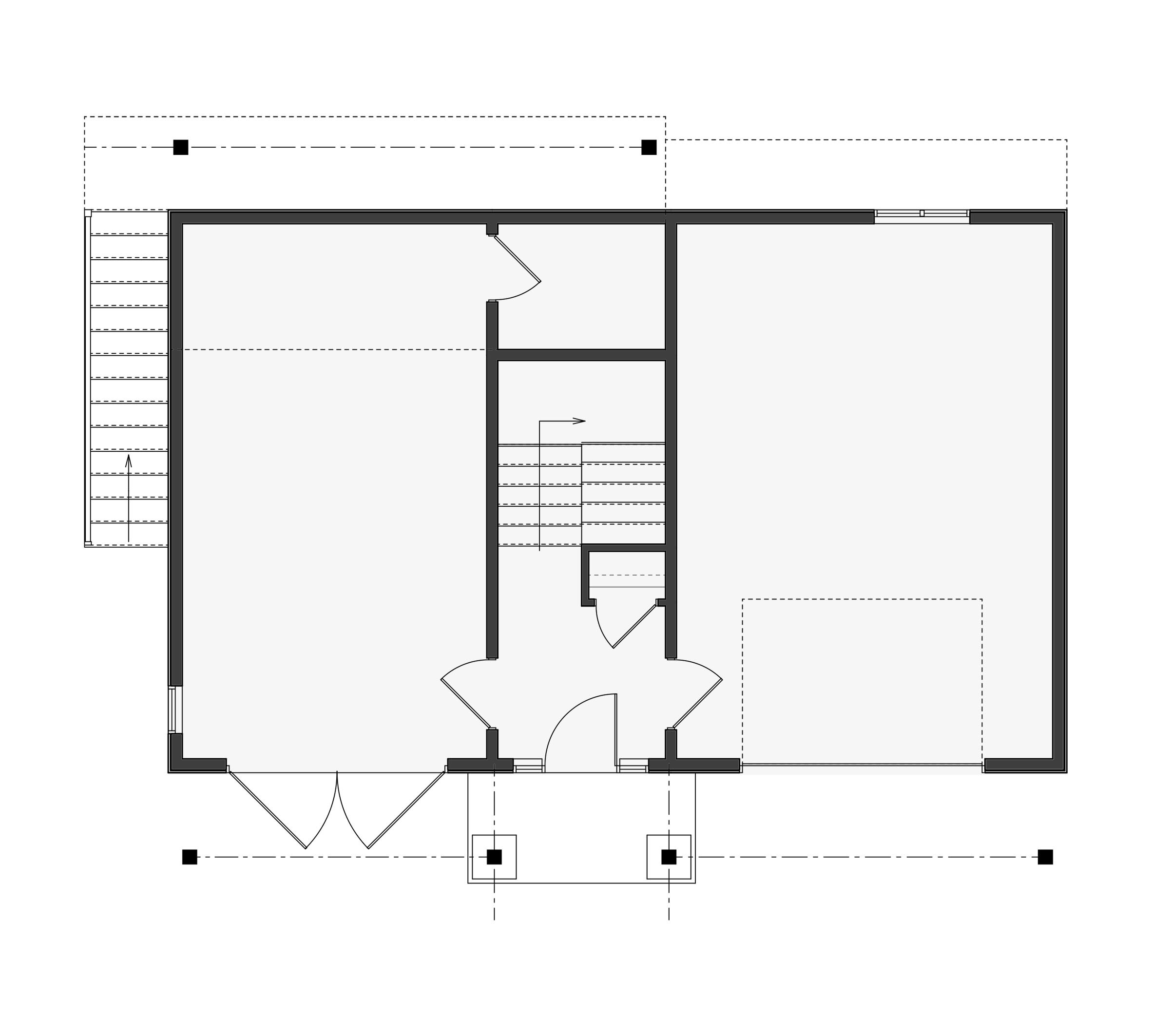

Optional: 2 Car Garage with Storage or 1 Car with 1 Bedroom and Bathroom
What's in a Set of Plans:
Foundation Plan, Floor Plans, Exterior Elevations, Building Cross-Sections, and Construction Details. Excluded: Site Plan & Property Specs. Please inquire. Structural Engineering is required for all house plans.
